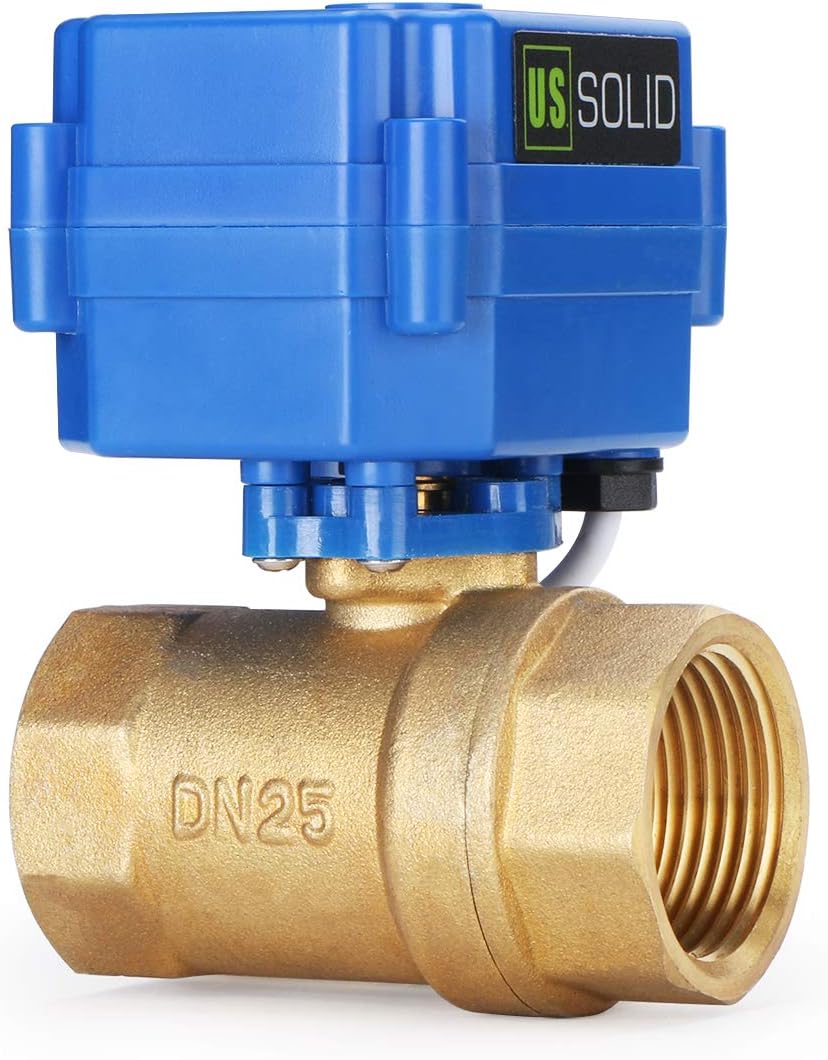

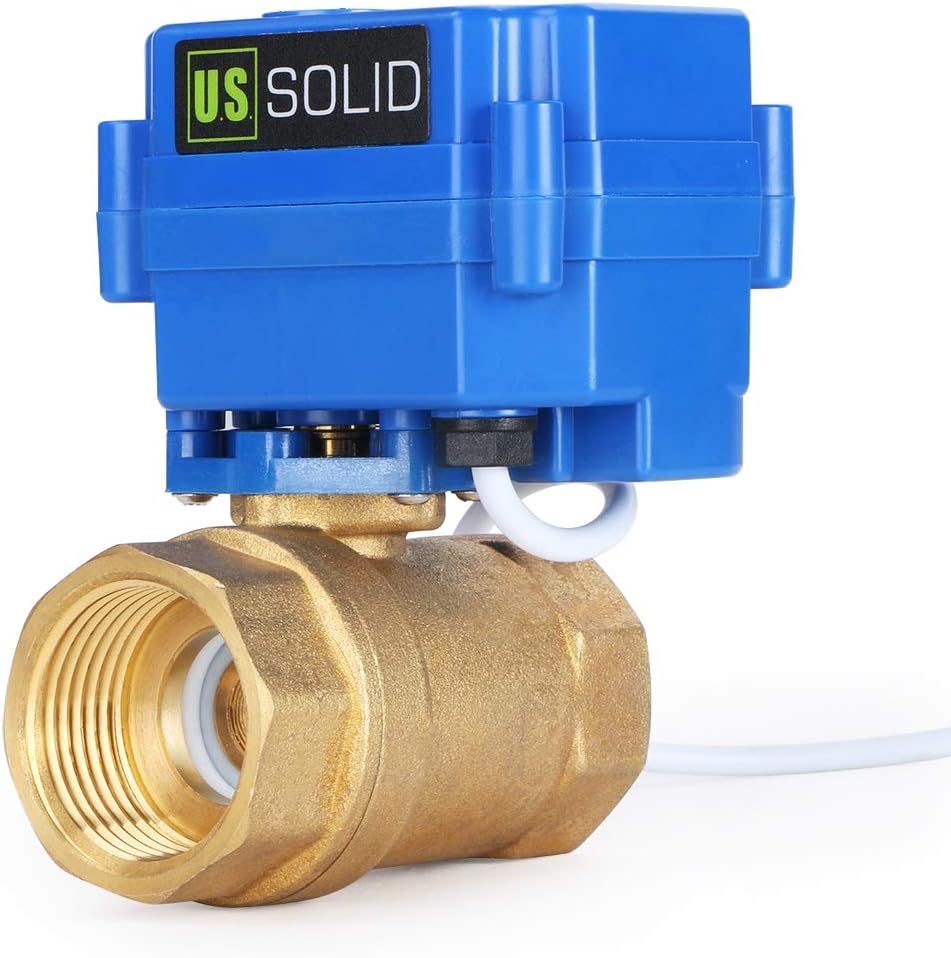

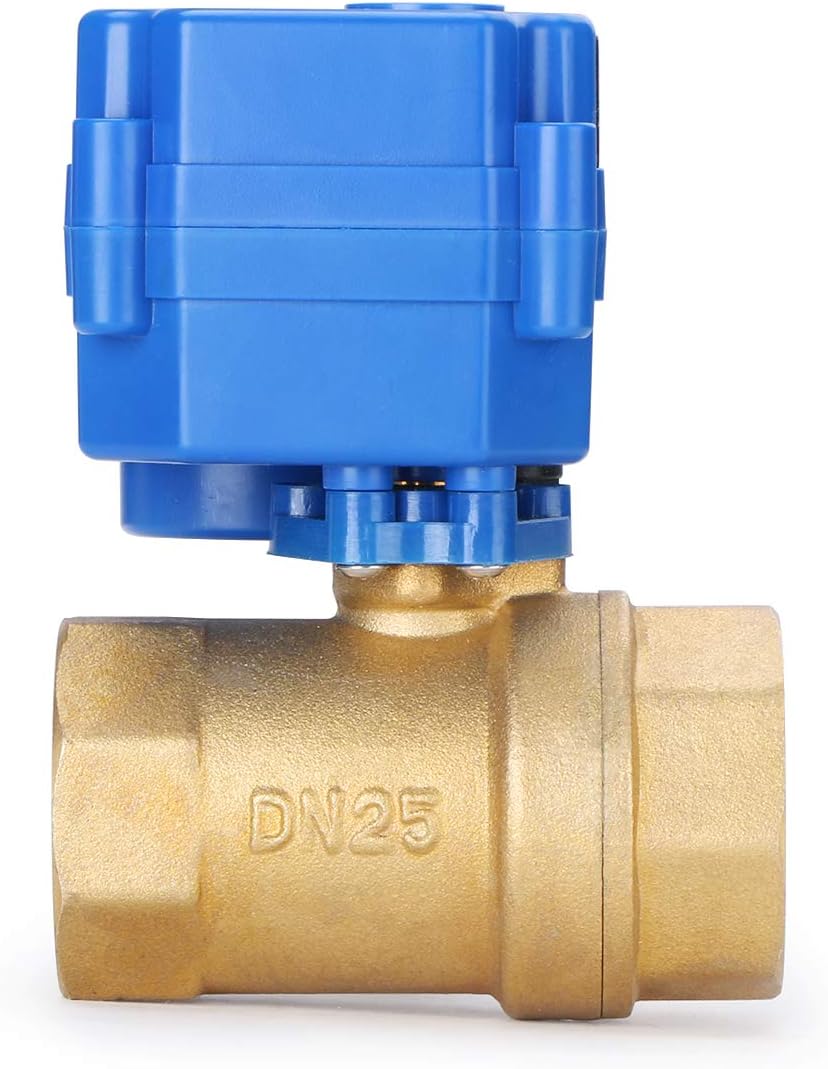

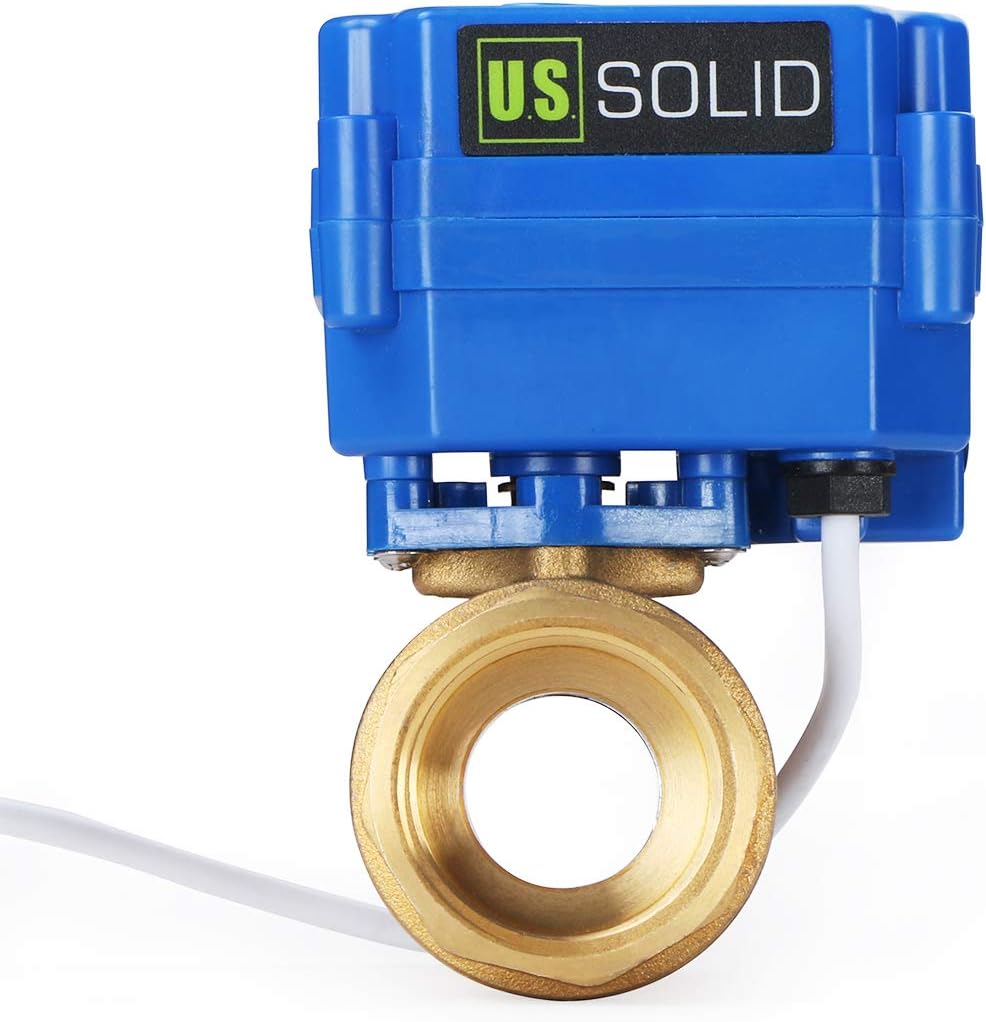

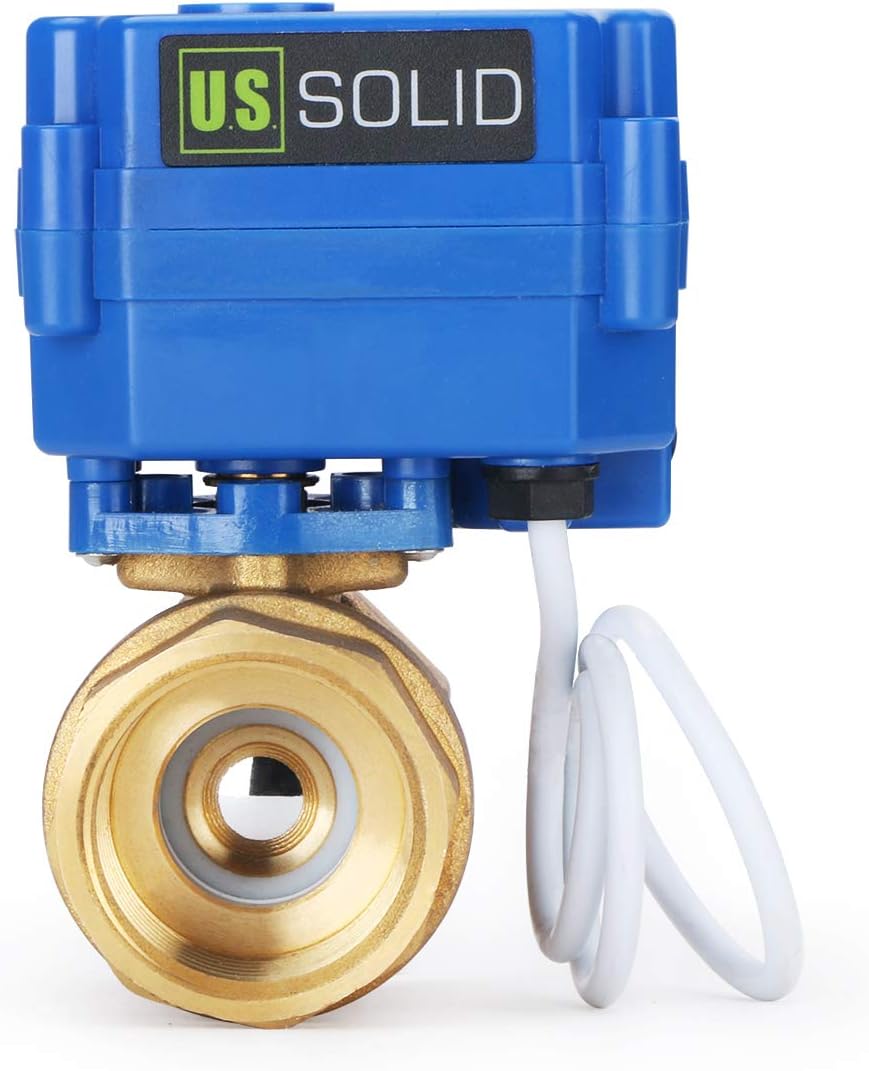

U.S. Solid 1″ Motorized Ball Valve – 9-24V DC Brass Electric Valve, Normally Closed (N.C.), Full Port, 5-Wire Control with Built-in Visual Open/Closed Position Indicator Window

Price: $54.19
(as of Jun 26, 2026 03:23:09 UTC – Details)
Buy On Amazon

Product description

Motorized ball valves offer an energy-efficient alternative to solenoid valves, especially for prolonged positioning. They mainly consume energy during opening and closing, with negligible amounts once fully opened. This allows for permanent connection without the risk of overheating or burning out.

Port Size 1″ NPT (Standard Port) Valve Material Brass Close/Open Time 6-8 Seconds Working Voltage 9-24V DC Max Power 5 W Max Torque 6 N m Max. Pressure 145 PSI （1.0 Mpa） Temperature Range Medium Temp: 32℉ to 194℉; Ambient Temp.: 14℉ to 104℉ Applicable Medium Water Life Expectancy 80,000-100,000 Cycles Flow Aperture 0.79 inch (20 mm) Normally Open/Closed Normally Closed Auto Return NO Waterproof Rating IP65 Wiring 5 wire Seal PTFE

U.S. Solid Motorized Ball Valve 1″ Brass Ball Valve with Standard Port, 9-24V DC and 5 Wire

This valve comes in Brass. It is 1” in diameter, and is standard port. This means the diameter of the opening in the ball is a full 1”. If you are using this for a system where pressure is important, or with mixed materials, where restrictions on flow can lead to the separating of the material, a full-bore ball valve is your best option. These valves are not intended for situations where fast action closing or opening is needed, as they do take a few seconds to fully open and close.

Wiring your new Motorized Ball Valve The LED indicators require an independent power supply of ≤36V DC.

DC: Connect the yellow wire to the negative pole(-). The valve will open when the red wire is connected to the positive pole(+), and close when the blue wire is connected to the positive pole(+). Disconnecting any wire will maintain the valve’s current state.

AC: Connect the yellow wire to any pole. The valve will open when the red wire is connected to the other pole, and close when the blue wire is connected to the other pole. Disconnecting any wire will maintain the valve’s current state.

Cherished by DIY Community, Approved by Engineers

Meticulously tested and performance-rated parts ensure quality. With a lifespan of up to 100,000 cycles, the valve operates in 3-5 seconds; higher voltage enables quicker opening and closing. The robust 2Nm torque in the stem, often overlooked, is crucial for enduring serious torque without failure.

Precision Threading How to Install the Motorized Ball Valve?

This motorized ball valve features standard NPT threading, commonly used in U.S. piping. The tapered threading enhances connection sealing, requiring pipe thread tape for installation. Meticulously manufactured and tested, ensuring precise threading for straightforward installation. Apply pipe thread tape tightly to the male pipe end to facilitate a secure connection. Screw tightly into the valve to maintain a leak-free connection throughout its lifespan.

What is the Waterproof Rating of this valve?

The motor’s housing is rated at IP65 for ingress protection. If permanently installed outdoors, it is recommended to place it under a shelter or in a protective box to prevent prolonged exposure to rain. For more details, please refer to Picture 1.

What is the difference between N.C. (Normally Closed) and N.O. (Normally Open) ?

In a N.C. valve, it’s closed without power and opens when energized. Conversely, in a N.O. valve, it’s open without power and closes when energized, blocking fluid or gas flow. For more details, please refer to Picture 2.

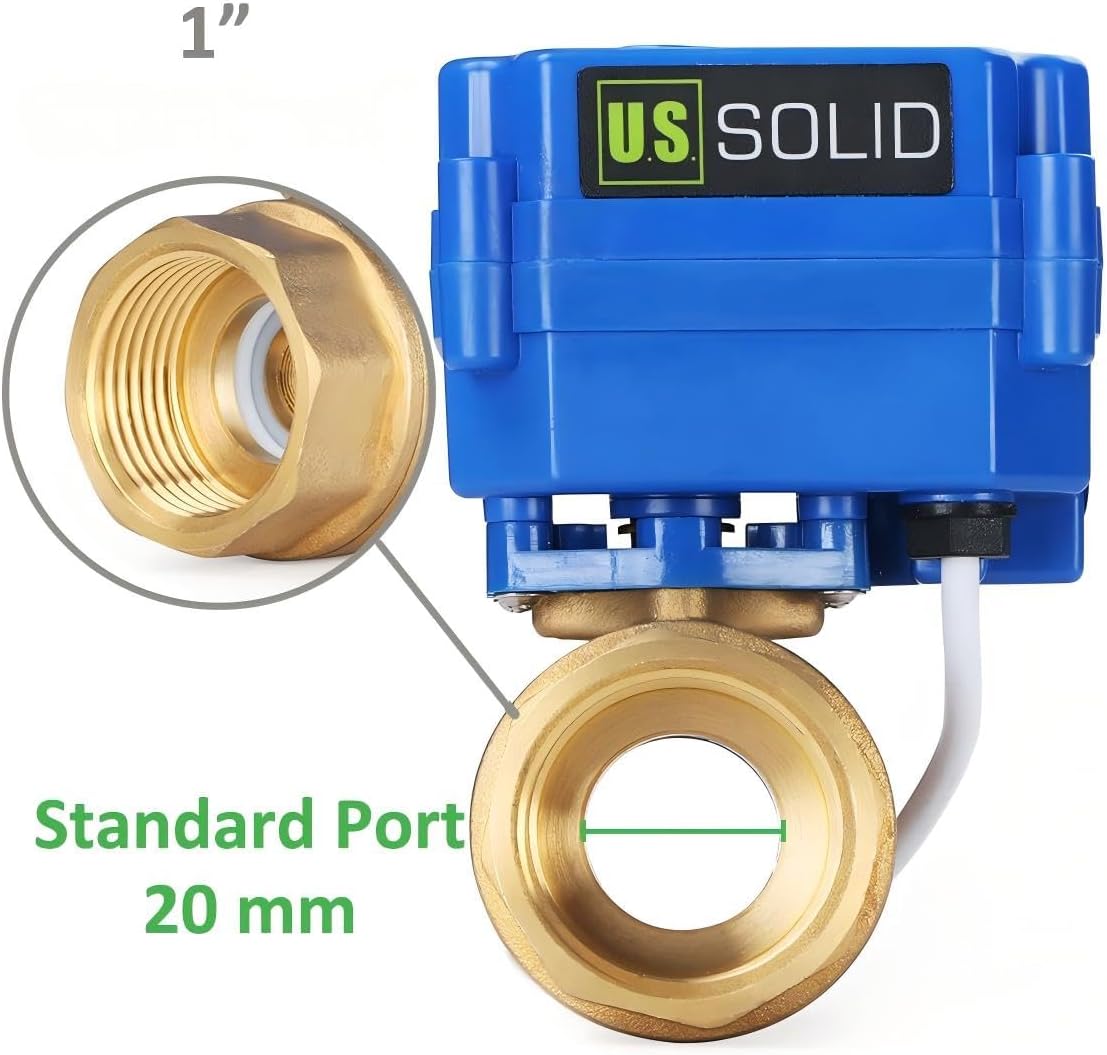

What is the difference between Full Port and Standard Port?

In a full port valve, the internal diameter of the valve is the same as the pipe it’s connected to. In a standard port valve, the internal diameter of the valve is smaller than the pipe size. For more details, please refer to Picture 3.

Can this be used for Drinking Water?

NO. This motorized ball valve is made of brass, which contains lead, should not be used for drinking water.

About ‘2 wire auto return’, ‘2 wire reverse polarity’, ‘3 wire’, ‘3 wire 1-Way Setup’ and ‘5 wire’.

For more details, please kindly refer to Picture 4.

Wiring Schematics

1″ Motorized Ball Valve

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.1 out of 5 stars 79

4.5 out of 5 stars 546

4.2 out of 5 stars 155

4.1 out of 5 stars 116

4.3 out of 5 stars 329

4.6 out of 5 stars 46

4.4 out of 5 stars 249

Price

$54.19$54.19

$59.79$59.79

$50.49$50.49

$73.15$73.15

$70.69$70.69

$64.19$64.19

$70.69$70.69

Valve Material

Brass

Stainless Steel

Brass

Stainless Steel

Brass

Stainless Steel

Stainless Steel

Bore Type

Standard Port

Full Port

Standard Port

Full Port

Standard Port

Full Port

Full Port

Auto Return

✘

✔

✘

✔

✔

✔

✘

Working Voltage

9-24V DC

9-24V AC/DC

9-24V DC

9-24V AC/DC

85-265V AC

9-24V AC/DC

9-24V DC

Wiring

5 wire

2 wire,auto return

2 wire,reverse polarity

2 wire,auto return

2 wire,auto return

2 wire,auto return

2 wire,reverse polarity

Manual Function

✘

✘

✘

✔

✘

✘

✘

Normally Closed

Normally Closed

Normally Closed

Normally Closed

Normally Closed

Normally Open

Normally Open

Normally Closed

Full Port Flow and Industrial Durability: With a 1 inch NPT brass thread and full port design, the internal bore matches the pipe diameter for maximum flow and zero pressure drop. Rated for a lifecycle of 80,000 to 100,000 cycles, it’s a long-term
Instant Visual Status Confirmation: Features a high-visibility built-inches indicator window on top of the actuator. This allows for immediate physical verification of the valve’s open or closed position—no need for external sensors or control panels to
Advanced 5-Wire Control Interface: The 5-wire setup offers a robust and stable control logic for 9-24V DC systems. This multi-wire configuration is designed for seamless integration into complex home automation, HVAC, and industrial PLC setups
Energy-Efficient Alternative to Solenoid Valves: Utilizing a built-inches limit switch, this electric ball valve automatically cuts power once fully open or closed. It eliminates the overheating risks and constant energy draw associated with solenoid
Fail-Safe Normally Closed (N.C.) Design: Engineered for precision and safety, this normally closed motorized valve remains inches a closed state until activated. It provides a reliable “fail-safe” solution for leak prevention and automated shut-off
